Monocromatica IP20

STRIP LED MONOCROMATICHE IP20
cod. OT-60L-0480-24-IP20

Strip led 4,8 W/mt 60 led /mt 24V IP 20
  • Led 2835
  • Input 24 Vdc
  • Consumo energetico 4,8 W/mt
  • Taglio ogni 100 mm
  • Larghezza Pcb 8 mm
  • Flusso luminoso 530 lm/mt
  • IP20
  • CRI>80
  • R9>50
  • Temp. funzionamento -25°C....+50°

codice art. colore °kelvin lumen/mt lumen/W led/mt
OT-60L-0480-24-IP20- EW
 EW 2700 449 94 60
OT-60L-0480-24-IP20- WW
 WW 3000 456 95 60
OT-60L-0480-24-IP20- LW
 LW 3500 470 98 60
OT-60L-0480-24-IP20- NW
 NV 4000 480 100 60
OT-60L-0480-24-IP20- CW
 CW 6000 530 110 60

cod. OT-120L-0960-24-IP20

Strip led 9.6 W/mt 120 led/mt 24V IP 20
  • Led 2835
  • Input 24 Vdc
  • Consumo energetico 9,6 W/mt
  • taglio ogni 50 mm
  • larghezza Pcb 8 mm
  • IP20- IP54
  • CRI>80
  • R9>50
  • Temp. funzionamento -25°C....+50°C

codice art. colore °kelvinlumen/mt lm/wled/mt
OT-120L-0960-24-IP20- EW
 warm

2700 991 103120
OT-120L-0960-24-IP20-WWwarm white3000 1007 105120
OT-120L-0960-24-IP20- NW
 natural4000 1060 110120
OT-120L-0960-24-IP20-CW
 cold6000 1166 131120
cod. 0T 140L-1440-24-IP20

Strip led 14,4W/mt 140 led/mt 24V IP 20
  • Led 2835
  • Input 24 Vdc
  • Consumo energetico 14,4 W/mt
  • Taglio ogni 50 mm
  • Larghezza Pcb 8 mm
  • IP20
  • CRI>80
  • R9>50
  • Temp. funzionamento -25°C....+50°C

codice art. colore °kelvinlumen/mt lm/wled/mt
OT-140L-1440-24-IP20- EWEW 27001636 114 140
OT-140L-1440-24-IP20-WW
WW 30001706 119 140
OT-140L-1440-24-IP20- NW
NW40001750121140
OT-140L-1440-24-IP20- NWCW6000 1925 134 140
cod. 0T 240L-1920-24-IP20

Strip led 19,2 W/mt 240 led/mt 24V IP 20
  • Led 2835
  • Input 24 Vdc
  • Consumo energetico 19,2 W/mt
  • Taglio ogni 33,3 mm
  • Larghezza Pcb 10 mm
  • IP20
  • CRI>80
  • R9>50
  • Temp. funzionamento -25°C....+50°C

codice art. colore °kelvinlumen/mt lm/wled/mt
OT-240L-1920-24-IP20- EW
EW 27002431 127 240
OT-240L-1920-24-IP20-WWWW 3000 2470 129 240
OT-240L-1920-24-IP20- NW
 NW 4000 2600 135 240
OT-240L-1920-24-IP20-CW
 CW6000 2860 149 240
cod. ST 60L-0480-24-IP20
Strip led 4,8W/mt 60 led/mt 24V IP 20
  • Led 2835
  • Input 24 Vdc
  • Consumo energetico 4,8 W/mt
  • Taglio ogni 100 mm
  • Larghezza Pcb 8 mm
  • IP20
  • CRI>94
  • R9>50
  • Temp. funzionamento -25°C....+50°C

codice art.
colore°kelvinlumen/mtlm/W
ST-60L-0480-24-IP20-EWEW 2700 449 94
ST-60L-0480-24-IP20-WW WW 3000 456 95
ST-60L-0480-24-IP20-LW
 LW 3500 470 98
ST-60L-0480-24-IP20-NW NW4000480100
ST-60L-0480-24-IP20-CWCW 6000 530110
delete_forever



cod. ST 120L-0960-24-IP20
Strip led 9,6W/mt 120 led/mt 24V IP 20
  • Led 2835
  • Input 24 Vdc
  • Consumo energetico 9,6 W/mt
  • Taglio ogni 50 mm
  • Larghezza Pcb 8 mm
  • IP20
  • CRI>94
  • R9>50
  • Temp. funzionamento -25°C....+50°C

codice art.
colore°kelvinlumen/mtlm/W
ST-120L-0960-24-IP20-EWEW 2700 896 94
ST-120L-0960-24-IP20-WW WW 3000 912 95
ST-120L-0960-24-IP20-LW
 LW 3500 940 95
ST-120L-0960-24-IP20-NW NW4000960100
ST-120L-0960-24-IP20-CWCW 6000 1060110
delete_forever

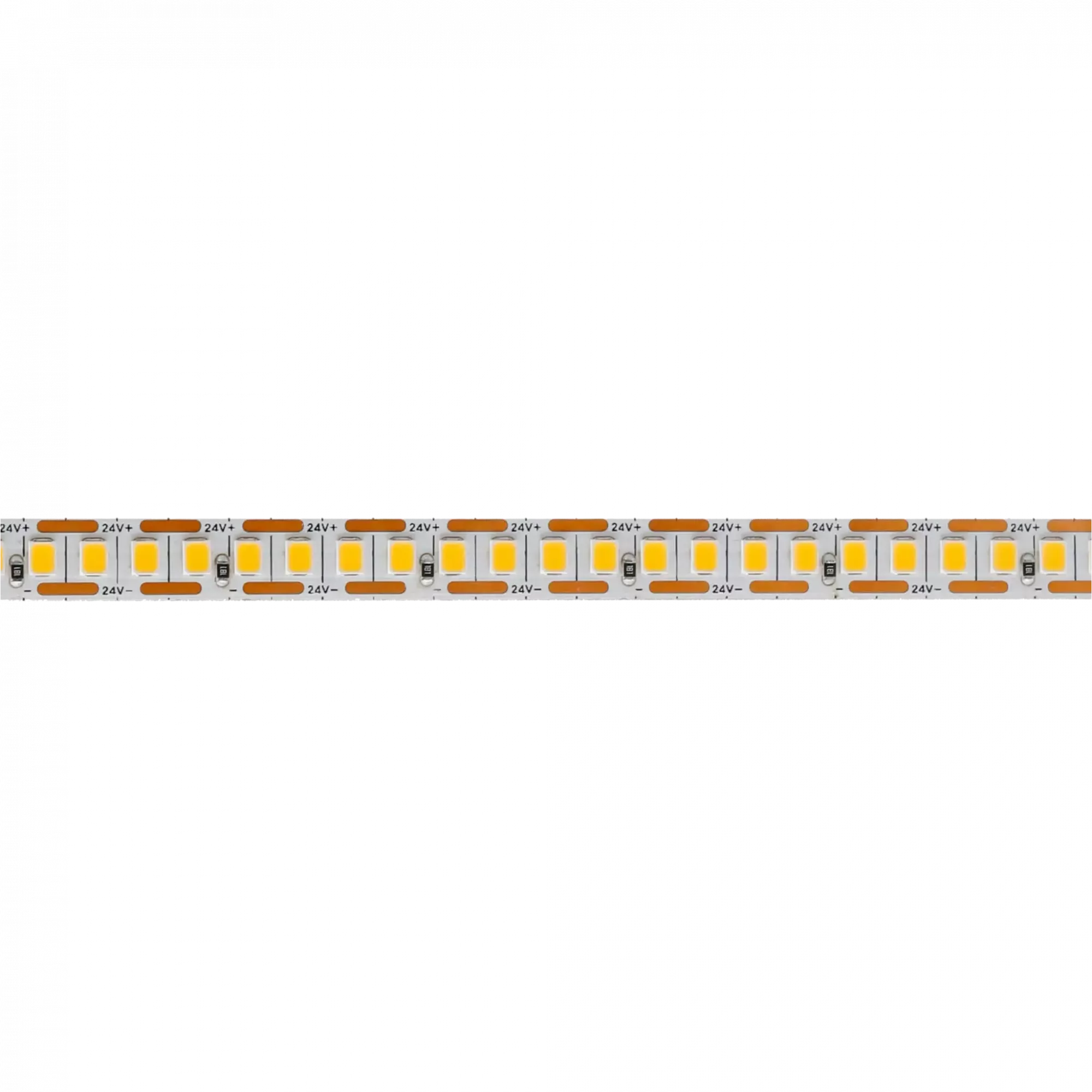

cod. SC 200L-1680-24-IP20

Strip led 16,8 W/mt 200 led/mt 24V IP 20
  • Led 2835
  • Input 24 Vdc
  • Consumo energetico 16,8 W/mt
  • Taglio ogni 5 mm
  • Larghezza Pcb 8 mm
  • IP20
  • CRI>90
  • R9>50
  • Temp. funzionamento -25°C....+50°C

codice art. colore °kelvin lumen/mt lumen/w led/mt
SC-200L-1680-24-IP20- WW
WW 3000 1999 119 200
SC-200L-1680-24-IP20- NW
 NW 4000 2184 130 200


cod. ST 203L-1250-24-IP20
Strip led 12,5 W/mt 200 led/mt 24V IP 20
  • Led 2835
  • Input 24 Vdc
  • Consumo energetico 12,5 W/mt
  • Taglio ogni 35 mm
  • Larghezza Pcb 5 mm
  • IP20
  • CRI>94
  • R9>50
  • Temp. funzionamento -25°C....+50°C

codice art colore °kelvin lumen/mt lumen/W led/mt
ST-203L-1250-24-IP20-UW UW 2300 1263 101 203
ST-203L-1250-24-IP20-SW
SW 2500 1277 102 203
ST-203L-1250-24-IP20-EW
EW 2700 1290 103 203
ST-203L-1250-24-IP20-WW
 WW 3000 1310 105 203
ST-203L-1250-24-IP20-LW
 LW 3500 1346 108 203
ST-203L-1250-24-IP20-NW
NW 4000 1380 110 203
ST-203L-1250-24-IP20-CW
 CW 6000 1518 121 203
delete_forever




cod. ST 240L-1920-24-IP20
Strip led 19,2 W/mt 240 led/mt 24V IP 20
  • Led 2835
  • Input 24 Vdc
  • Consumo energetico 19,2 W/mt
  • Taglio ogni 33,3 mm
  • Larghezza Pcb 10 mm
  • IP20
  • CRI>94
  • R9>50
  • Temp. funzionamento -25°C....+50°C

codice art. colore °kelvinlumen/mt lm/wled/mt
ST-240L-1920-24-IP20- EW
 EW 27002160 116 240
ST-240L-1920-24-IP20-WW
WW 3000 2195 114 240
ST-240L-1920-24-IP20- NW
 NW 4000 2310 120 240
ST-240L-1920-24-IP20-CW
 CW6000 2541 132 240
cod. ST 240L-2300-24-IP20

Strip led 23 W/mt 240 led/mt 24V IP 20
  • Led 2835
  • Input 24 Vdc
  • Consumo energetico 232 W/mt
  • Taglio ogni 33,3 mm
  • Larghezza Pcb 10 mm
  • IP20
  • CRI>94
  • R9>50
  • Temp. funzionamento -25°C....+50°C

codice art. colore °kelvinlumen/mt lm/wled/mt
ST-240L-2300-24-IP20- EW
 EW 27003030 132 240
ST-240L-2300-24-IP20-WW
WW 3000 3078 134 240
ST-240L-2300-24-IP20- NW
 NW 4000 3240 140 240
ST-240L-2300-24-IP20-CW
 CW6000 3564 155 240
cod. ST 120L-0960-24-IP67

Strip led 9,6W/mt 120 led/mt 24V IP 67
  • Led 2835
  • Input 24 Vdc
  • Consumo energetico 9,6 W/mt
  • Taglio ogni 50 mm
  • Larghezza Pcb 8 mm
  • IP20
  • CRI>94
  • R9>50
  • Temp. funzionamento -25°C....+50°C

codice art.
colore°kelvinlumen/mtlm/W
ST-120L-0960-24-IP67-EWEW 2700 896 94
ST-120L-0960-24-IP67-WW WW 3000 912 95
ST-120L-0960-24-IP67-LW
 LW 3500 940 95
ST-120L-0960-24-IP67-NW NW4000960100
ST-120L-0960-24-IP67-CWCW 6000 1060110
